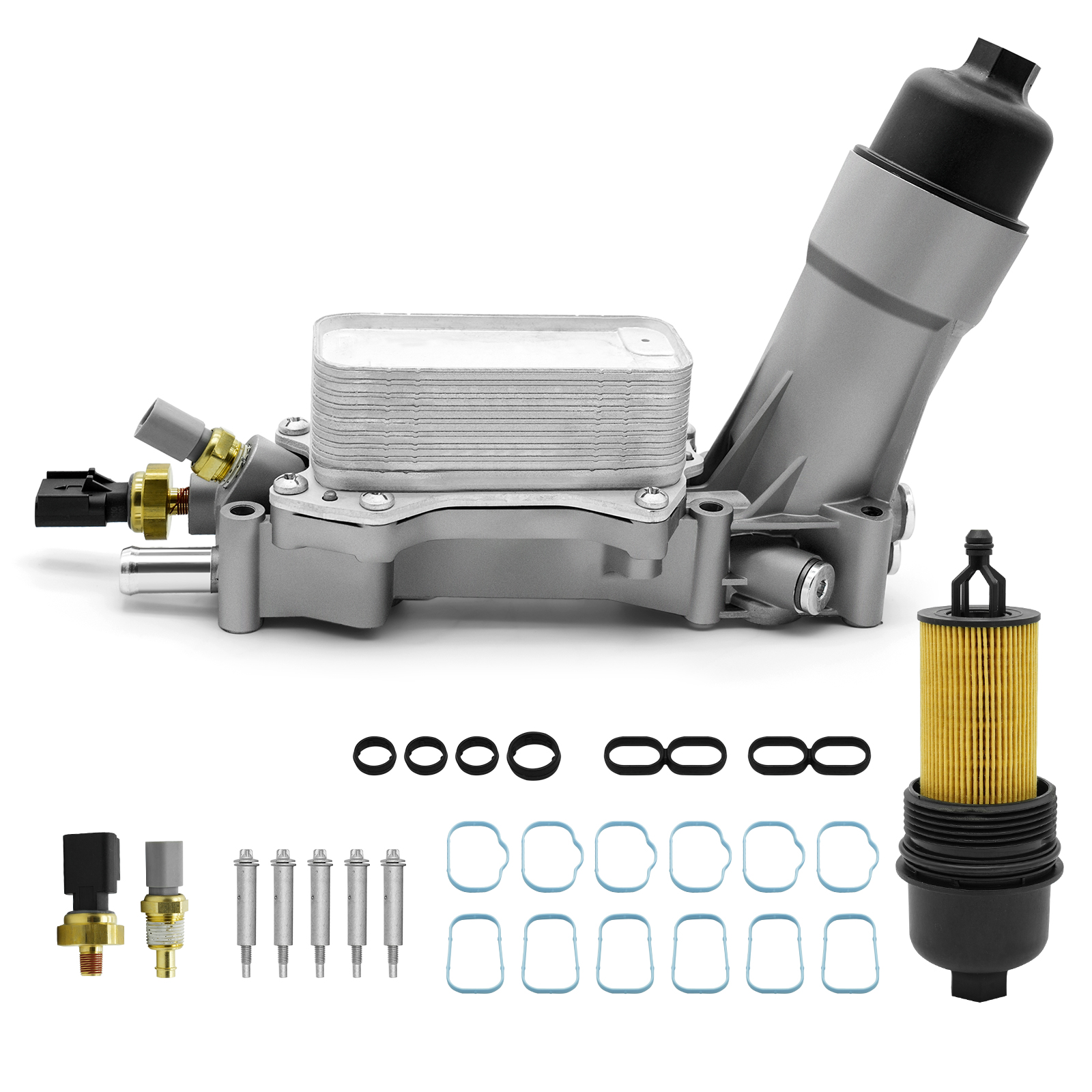

Are you struggling to find the right filter housing for your application? Choosing the correct filter housing is crucial for efficiency and safety. In this post, you'll learn about filter housing types, materials, and configurations to make informed decisions.
Filter housings come in various materials, each offering unique benefits depending on the application. The most common materials include:
Stainless Steel (304, 316, 316L): Widely used in water, food, and pharmaceutical industries due to excellent corrosion resistance and ease of cleaning. SS 316 offers enhanced strength and better resistance to harsh chemicals compared to SS 304.
Carbon Steel: Known for high strength and durability, carbon steel is a cost-effective choice for non-food applications like oils, machine coolants, and adhesives. However, it lacks corrosion resistance compared to stainless steel.
Aluminum: Lightweight and strong, aluminum housings are ideal for mobile or portable applications. They are non-sparking, making them safe for use with diesel or gasoline-powered machinery.
Polypropylene and Other Plastics: These materials resist acids and aggressive chemicals well. Plastic housings are highly impermeable and corrosion-resistant, making them suitable for water treatment and chemical processing.
Exotic Alloys: For extreme environments, such as saltwater exposure or high temperatures, exotic alloys provide superior corrosion resistance and durability. These are custom-made for specialized applications.
Selecting the correct filter housing material depends on several factors:
Chemical Compatibility: The material must resist corrosion or degradation by the fluid or gas being filtered. For example, stainless steel suits most water and food applications, while polypropylene handles acidic chemicals better.
Temperature and Pressure: High temperatures or pressures require materials like stainless steel or exotic alloys that maintain integrity under stress.
Mechanical Strength: Applications involving shock, vibration, or heavy-duty use benefit from carbon steel or stainless steel due to their toughness.
Hygiene Requirements: Food and pharmaceutical industries demand materials easy to sanitize, such as stainless steel 316L.
Cost Constraints: Budget may limit material choice; carbon steel is economical but less corrosion-resistant, while exotic alloys are pricier but necessary for harsh conditions.
Weight Considerations: Aluminum is preferred when weight reduction is critical, such as in mobile equipment.
| Material | Corrosion Resistance | Strength | Temperature Range | Typical Applications |
|---|---|---|---|---|
| Stainless Steel 304 | Good | Medium | Up to 870°F (465°C) | Food, water, cosmetics |
| Stainless Steel 316 | Excellent | High | Up to 925°F (496°C) | Chemical, pharmaceutical |
| Carbon Steel | Low | Very High | Up to 1100°F (593°C) | Oils, coolants, adhesives |
| Aluminum | Moderate | Medium | Up to 400°F (204°C) | Mobile equipment, diesel machinery |
| Polypropylene | Excellent (acidic) | Low | Up to 180°F (82°C) | Water treatment, acids |
| Exotic Alloys | Excellent | High | Very High | Saltwater, high corrosion, high temp |
Note: Temperature ranges and resistance depend on specific grades and should be verified per application.
Choosing the right filter housing material ensures durability, safety, and efficiency. It also minimizes maintenance and replacement costs by preventing premature failure.
Tip: Always verify chemical compatibility charts and operating conditions before selecting a filter housing material to avoid costly corrosion or damage.
Choosing the right configuration for your filter housing depends mainly on how the housing will be used. The configuration must match the filtration needs and the flow path of the fluid or gas. Here are the key factors to consider:
Type of Filtration Duty: Different duties require different port arrangements. For example, a simple inlet filter might only need one port, while particulate filtration usually requires two ports—one for inlet and one for outlet.
Number of Ports: The number of ports depends on the filtration process:
Single Port: Used for basic inlet filtration or when fluid only needs to pass through one opening.
Two Ports: Common for particulate filtration, allowing fluid to enter and exit the housing.
Three Ports or More: Needed for more complex processes like coalescing, bypass, or membrane filtration, which require additional flow paths.
Flow Direction and Pressure Drop: The housing configuration should optimize flow direction to minimize pressure loss. A poorly configured housing can cause turbulence or uneven flow, reducing filter efficiency.
Space Constraints: Physical space available for the filter housing may limit configuration options. Compact configurations are preferred for tight spaces.
Maintenance Access: The configuration should allow easy access for filter replacement or cleaning. Flip-top lids or swing bolts can simplify maintenance.
Material and Environmental Conditions: Sometimes, the environment or material compatibility affects configuration choices, especially if ports must be sealed or oriented in a specific way for corrosion resistance or safety.
Filter housings come in various configurations tailored to specific needs. Here are some common examples:
Inlet-Only Configuration: This simplest form features a single port where fluid enters the housing. It’s used for applications requiring minimal filtration or pre-filtration steps.
Particulate Filter Configuration: Two ports—one inlet and one outlet—allow fluid to flow through the filter element, capturing solid particles. This is the most common setup for general filtration needs.
Coalescing Filter Configuration: Typically includes three ports. Fluid enters through one, passes through the coalescing filter element that merges small droplets into larger ones, and exits through another port. The third port can serve as a bypass or drain.
Bypass Filter Configuration: Features an additional port to divert fluid around the filter element when necessary. This setup helps maintain flow during filter maintenance or when filtration is temporarily not needed.
Membrane Filter Configuration: Often requires multiple ports to support complex flow paths for selective filtration through membranes. These ports manage feed, permeate, and concentrate streams.
Multi-Cartridge or Multi-Bag Configuration: Larger housings designed to hold multiple filter elements. These often have multiple inlet and outlet ports or a common manifold to handle high flow rates.
Selecting the right configuration ensures optimal filtration performance, ease of maintenance, and system efficiency. It’s vital to consider your specific process requirements and consult with filter housing manufacturers to tailor the configuration to your needs.
Tip: When choosing a filter housing configuration, always map your process flow and maintenance routines first to ensure the housing layout supports both efficient filtration and easy servicing.
Choosing the right size for your filter housing is crucial. It affects efficiency, maintenance intervals, and overall system performance. Here are the main factors to consider:
Contaminant Type and Load: Understand what particles or impurities the filter must remove and how much. Heavy contamination may require larger or multiple filters.
Maximum Flow Rate: The housing must handle the peak flow without causing excessive pressure drop. Oversizing can waste space and money; undersizing can reduce filtration efficiency.
Line Size and Port Type: The filter housing must fit the piping system. Matching port sizes avoids flow restrictions or costly adapters.
Filtration Level Required: Fine filtration usually needs more surface area, which means larger or multiple filter elements.
Pressure and Temperature Ratings: Ensure housing size supports the system’s operating pressure and temperature without risk.
Service Life and Maintenance Frequency: Larger housings often allow longer intervals between filter changes, reducing downtime.
Cost vs. Performance Balance: Smaller filters cost less upfront but may need frequent replacements. Larger filters cost more but often provide better long-term value.
Balancing these factors means weighing your priorities. For example:
If fast response time and minimal footprint are critical, choose a smaller housing. It costs less and fits tight spaces but may require frequent servicing.
If long service intervals and low pressure drop matter more, opt for a larger housing with more filter area. It reduces downtime and energy costs.
Consider the adsorption loss: smaller filters may adsorb more contaminants per volume, affecting product quality.
In industrial settings, space availability and maintenance access can limit housing size options.
Always factor in future scalability if your process flow might increase.
Tip: Before finalizing size, simulate flow rates and pressure drops using manufacturer data or software tools to ensure optimal filter housing performance.
Filter housings come in various designs, each supporting specific filtration technologies tailored to different industrial needs. Understanding these technologies helps you select the right housing for your application.
Single-cartridge housings hold one filter element, ideal for smaller flow rates or precise filtration needs. They are common in pharmaceutical, food, and chemical industries where high purity is essential. Multi-cartridge housings can contain dozens, sometimes over 100 cartridges, allowing them to handle large flow volumes while maintaining fine filtration. These systems are perfect for processes requiring both high flow and tight contaminant control.
Cartridge filters offer:
High filtration precision
Easy cartridge replacement
Scalability by adding more cartridges
They work by forcing fluid through filter media inside cartridges, trapping particles while allowing clean fluid to pass.
Multi bag filter housings are designed for high-volume and coarse filtration applications. They hold several filter bags—sometimes up to 14—providing large surface area for capturing bigger particles. This makes them suitable for cooling water systems, wastewater treatment, and other processes with heavy contaminant loads.
Advantages include:
Handling large flow rates efficiently
Simple maintenance by replacing bags
Robust construction for industrial use
They are less precise than cartridge filters but excel at removing bulk solids and protecting downstream equipment.
Cyclone and hydrocyclone filters use centrifugal force to separate solids from liquids without filter media. Fluid enters tangentially, spinning inside the housing. Heavier particles move to the outer wall and settle at the bottom, while cleaner fluid exits from the top.
These filters are common in:
Chemical processing
Wastewater treatment
Sand separation in water systems
They require minimal maintenance since no filter elements clog. However, they are best for removing larger solids and not suitable for fine filtration.
Basket Strainers: Capture large debris to protect pumps and valves. Simple design, easy to clean.
Simplex Filters: Compact, single-element housings for less demanding filtration tasks or limited space.
Each technology suits different needs, so consider flow rate, contaminant type, and filtration precision when choosing.
Tip: Match filter housing technology to your process needs—use cartridge filters for fine filtration, bag filters for high volume, and cyclone filters for heavy solids separation to optimize performance and maintenance.
Filter housings serve many industries due to their adaptability and efficiency. Knowing how each industry uses them helps select the right housing for your needs.
In petrochemical and offshore settings, filter housings must handle harsh environments and aggressive fluids. Multi-cartridge and cyclone filters are common here. They remove solid contaminants from oil, gas, and chemicals to protect equipment and maintain product quality.
Multi-cartridge filters handle large flow rates and provide fine filtration, essential for refining processes.
Cyclone filters separate heavy solids like sand or metal particles using centrifugal force, reducing wear on pumps and valves.
Materials like stainless steel or exotic alloys resist corrosion from saltwater and chemicals.
These housings often face high pressure and temperature, so durability is critical.
The food industry demands strict hygiene and safety standards. Filter housings here must be easy to clean and made from materials that won't contaminate food products.
Multi-bag and cartridge filter housings are popular because they provide precise filtration and can be sanitized easily.
Stainless steel 316L is the material of choice for its corrosion resistance and hygienic properties.
Applications include filtering edible oils, beverages, dairy products, and water used in food processing.
Filter housings ensure compliance with food safety regulations and help maintain product purity.
Water treatment plants and waste management facilities use filter housings to remove solids and contaminants from water streams.
Basket strainers and multi-bag filters capture large debris and suspended solids in wastewater.
Cyclone and hydrocyclone filters separate sand and grit without filter media, reducing maintenance.
Plastic and polypropylene housings resist acidic or aggressive chemicals found in some waste streams.
These housings help protect downstream equipment and meet environmental discharge standards.
Choosing the right filter housing improves treatment efficiency and lowers operational costs.
Filter housings, especially those made from stainless steel or exotic alloys, offer excellent durability. They withstand high pressures and extreme temperatures common in industrial environments. This toughness ensures long service life, even under harsh conditions like chemical exposure or mechanical stress. For example, stainless steel 316 housings resist corrosion and maintain integrity in aggressive chemical processes. Carbon steel options provide strong shock resistance for heavy-duty applications. This durability reduces the frequency of replacements and downtime, saving costs over time.
Cost plays a significant role when selecting filter housings. Standard materials like carbon steel are more affordable but may lack corrosion resistance, limiting their use to less demanding environments. Stainless steel housings cost more but offer better longevity and lower maintenance expenses in corrosive settings. Exotic alloys and custom designs increase costs further, justified only when extreme conditions demand superior performance. Additionally, complex configurations or multi-cartridge designs raise initial investment but may improve overall process efficiency. Balancing upfront costs against long-term benefits is key to making a smart choice.
Regular maintenance is essential to keep filter housings functioning optimally. Many housings feature designs that simplify servicing, such as flip-up lids or swing bolts, allowing quick access to filter elements. However, periodic cleaning and inspections are necessary to prevent clogging, corrosion, or leaks. Maintenance frequency depends on the application’s contamination levels and operating conditions. Neglecting upkeep can lead to reduced filtration efficiency, higher pressure drops, or even equipment failure. While maintenance adds operational costs, choosing a housing with easy access and durable materials can minimize downtime and labor.
Choosing the right filter housing involves considering material, configuration, and size to ensure durability and efficiency. Stainless steel offers corrosion resistance, while carbon steel provides strength. Configuration affects flow and maintenance, while size impacts performance. Maintenance and cost are crucial factors. For optimal results, balance these elements with your specific application needs. Wenzhou Flitland Filter Manufacturing Co., Ltd. provides high-quality filter housings that offer long-term value and reliability, catering to diverse industrial requirements.
A: A filter housing is a casing that holds filter elements, facilitating the filtration of fluids or gases by trapping contaminants.
A: Select filter housing material based on chemical compatibility, temperature, pressure, mechanical strength, hygiene requirements, cost, and weight considerations.
A: Stainless steel is used in filter housings for its excellent corrosion resistance, strength, and ease of cleaning, making it ideal for food and pharmaceutical applications.
A: Factors include filtration duty, number of ports, flow direction, space constraints, maintenance access, and material/environmental conditions.
A: Filter housing size impacts efficiency, maintenance intervals, and system performance, balancing contaminant load, flow rate, and pressure ratings.
